Turbo installation Hardware Kit - Various turbos/ Various prices

This kit contains every nut, bolt, and gasket needed to install a turbo in your TDI

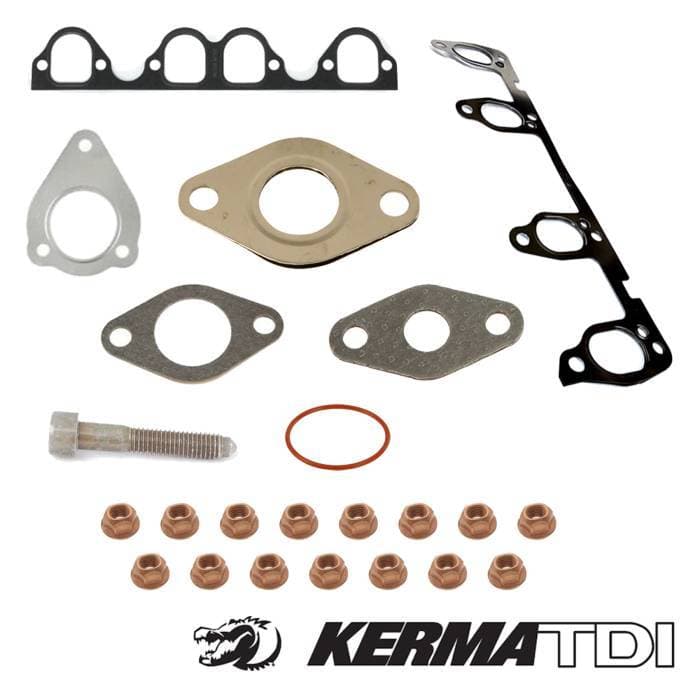

ALH/BEW kit-

Includes:

• 1 x Intake Manifold Gasket


• 1 x Composite EGR gasket


• 1 x Metal EGR gasket


• 1 x 1-piece Exhaust Port Gasket (picture shows 4 individual ones)


• 1 x Downpipe Gasket


• 1 x Oil Return gasket


• 1 x EGR seal


• 15 x Copper Nuts


• 1 x Intake Manifold Bolt (in case 1 gets damaged or lost during removal or install of turbo)

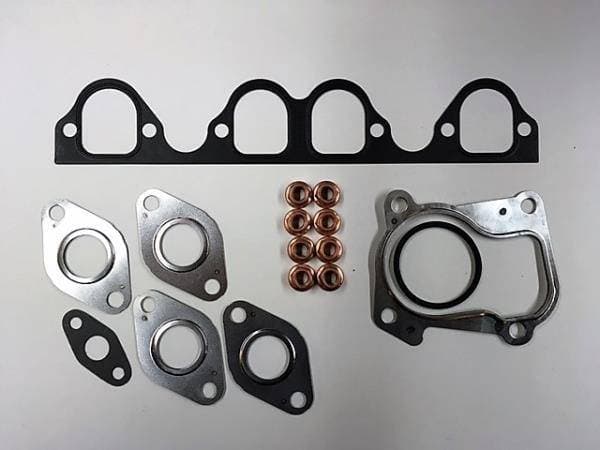

Mk3 / B4 (K03/K04) - REVISED 1/2017

Includes:

• 1 x Intake Manifold Gasket


• 1 x Downpipe Gasket,


• 1 x Oil return line Gaskets


• 4 x Metal EGR Gaskets


• 8 x Copper Pinch Nuts


• 1 x Turbo Inlet Pipe To Compressor Cover O-Ring

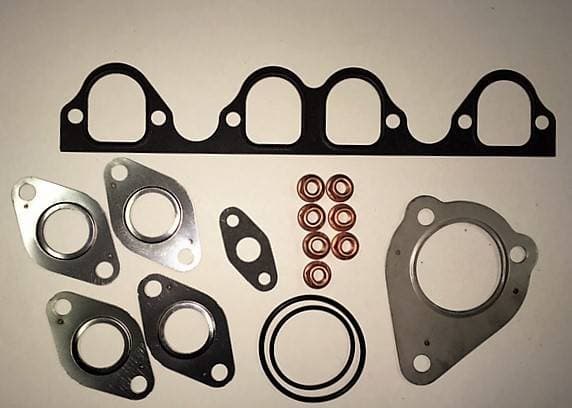

BHW (B5.5 Passat) - REVISED 1/2017

Includes:

• 1 x Intake Manifold Gasket


• 1 x Downpipe Gasket


• 1 x OilReturn line Gasket


• 4 x Metal EGR Gaskets


• 7 Copper Pinch Nuts


• ASV Throttle to Manifold O-Ring (larger o-ring)


• EGR Valve to Manifold O-Ring (smaller o-ring)

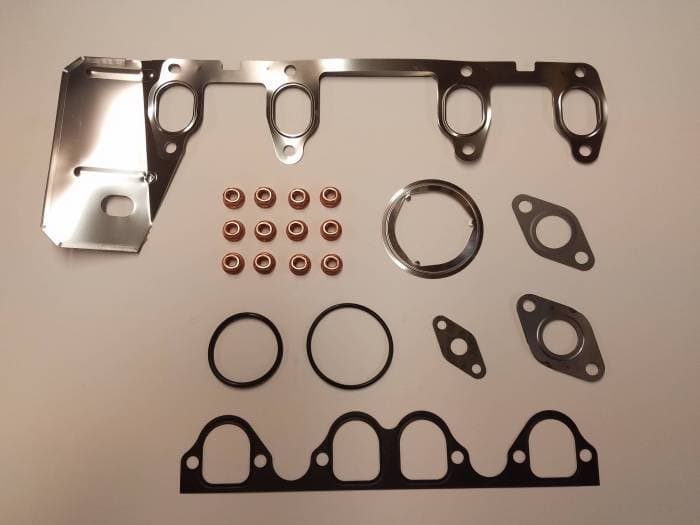

BRM / PD 140 -

Includes:

• 12 x Copper Nuts


• 1 x Downpipe Gasket


• 1 xExhaust Manifold Gasket with Heat Shield


• 1 x Quad Seal for EGR


• 1 x EGRThrottle Seal


• 1 x Oil Return Gasket


• 1 x Metal EGR gasket


• 1 x Composite EGR Gasket


• 1 x Intake Manifold Gasket

PD140 turbo requires Oil Drain Plug to block EGT Probe provision

Oil Drain Plug

Oil Drain Plug (Drilled for EGT Probe)

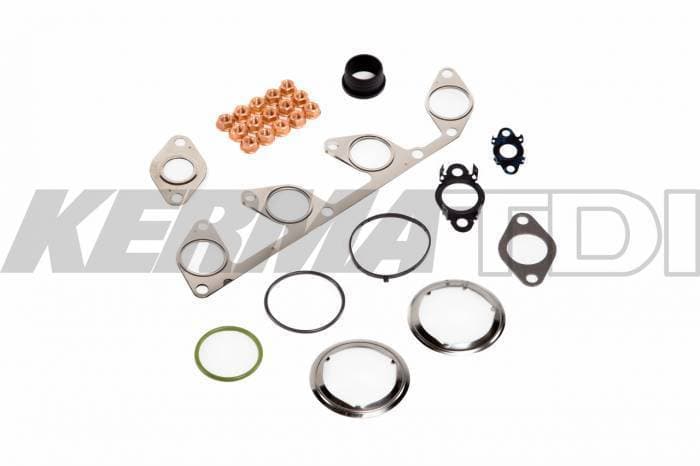

Common Rail (CBEA)(CJAA)
