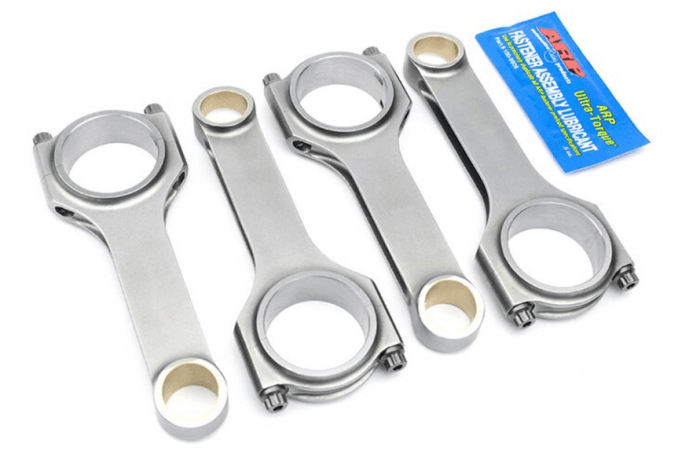

FCP Engineering H-Beam Connecting Rods for 1.9 TDI Engines
Ultimate upgrade for the 90 / 110 / PD100 / PD115 (1.9 8v)
Shot peened and heat treated
Genuine FCP Engineering
These rods are designed as the ultimate upgrade for the PD100 / PD105 / PD115 (1.9 8v)
These will also fit the 90BHP and 110BHP Models
They can also be used with 2.0 BHW Pistons when boring the 1.9 8v engines to 2.0 Capacity
This kit consists of:
FCP Engineering H-Beam Con Rods (Set of 4)
ARP Bolt Kit
Specifications
• 144mm center - center
• 26mm tapered small end
• 50.6mm big end
• For use with Stock Pistons or 2.0 Pistons in the 1.9 Engines
• Special profiled so there is no need for grinding in the block
• 2 piece forged from 40CrNiMo steel
• Comes with ARP 2000 bolts and assembly instructions
• Shot peened and heat treated
• Weight is 575 gram with bolts, tolerance of +- 1 gram
An imperial 3/8" 12 point socket is advised for installation
H-Beam Rod Installation Instructions
Clean and inspect the rods carefully
To separate the rod,install the bolts approx 3 full threads and hold the small rod half
while you knock LIGHTLY on the rod bolts with a plastic hammer
These rods are machined down to the lowest small end tolerance, so it is always
needed to check pin fit. This should be done by a good machine shop
It is highly recommended to measure the bolt stretch instead of just using a torque
wrench.
These rods come with ARP 2000 5/16 bolts
Stretch values on the bolts are:
0.0055-0.0060 inches
0.14-0.15mm
Recommended Torque values are:
32 ft-lbs with ARP lube
43NM with ARP lube
