Cylinder Head Install Kit (Mk4 ALH)

ALH Cylinder HeadInstall Kit

Note: When replacing the engine block, rods, crankshaft, and especially pistons it is imperative to measure piston protrusion at TDC above the block deck in order to select the correct head gasket thickness. Projection MUST fall between .91mm and 1.20mm & have the appropriate head gasket thickness to achieve the correct compression ratio.

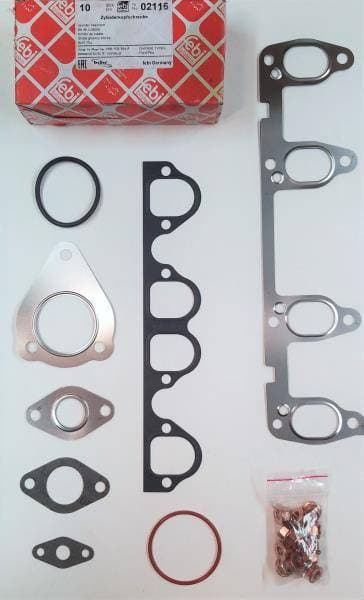

Kit includes:

• 1 x Head Bolts (10) 068103384A


• 1 x Coolant Flange O-ring 037121688


• 1 x Exhaust header downpipe gasket 3A0253115


• 1 x Exhaust Manifold Gasket 037253039D


• 1 x Metal EGR cooler gasket 038131547A


• 1 x Paper EGR gasket 069131547D


• 1 x oil return line gasket 028145757


• 1 x intake manifold gasket 028129717D


• 1 x EGR to intake manifold O-Ring N90521604


• 15 x copper pinch nuts 11621711954
