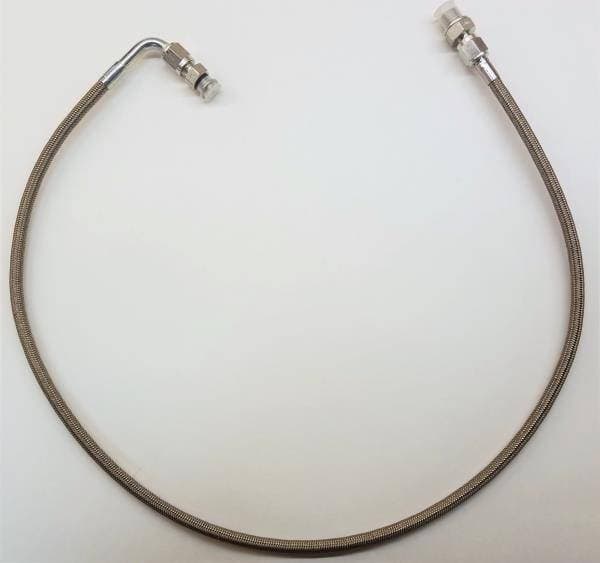

Braided steel oil supply line for Mk3 / B4 (not 96 Passat).
This replaces the factory hard line between the engine block and the turbo. Includes a -4 AN braided steel high temperature oil hose, seals, and swivel fittings needed to install between the oil supply on the front of the engine to the turbo oil inlet.
The oil supply line should be changed when a new turbo is installed. This line is durable and not prone to fractures, kinks, or breakage like the solid stock line. Professional installers and DIY appreciate the thoughtful implementation of this seemingly simple piece.
This particular line contains 2 different fittings for the turbo side as Garrett and Borg Warner decided to use different fittings.
Notable features include:
- a hard-piped 90 degree elbow at the turbo inlet. While it costs a few dollars more, this is the best way to implement a sharp bend, instead of relying on the flex of the hose. It results in a neater appearance and less stress on this crucial component. The positioning also retains full clearance and convenient access to the VNT actuator adjustment and snap ring, even on the smaller turbos. The factory oil line attachment points can still be used for a secure installation and maximum reliability without stressing the line by sharp bends.
-Our fittings require smaller wrenches than the factory ones. The turbo side of our fitting can be installed using a socket, and then the oil line side can be easily installed with plenty of clearance for an ordinary wrench. The factory fitting typically requires a specially modified "sacrificial" 17mm wrench with ground down sides for proper access and full "bite" on the factory fitting. Our implementation is much more convenient and installer friendly.
-The block side replaces the factory banjo fitting with a screw-in swivel fitting. The factory banjo fitting is very awkward to maneuver into place, because space is tight in that area. It is very easy to drop the washer and/or bolt down into the nether regions of the engine, and we all know how frustrating that can be. Also, if the factory hard line is bent even slightly (all too easy to have happen) it's even more difficult to line up without cross-threading.
-The flexibility makes it a breeze to install. The factory hard line is almost impossible to install in exactly the same place as the original. Our flexible line is a lot more user-friendly.
The central theme here is user-friendliness while improving upon the factory features. We've done the legwork and research, with experience that spans hundreds of installations, to make things as "hassle free" as possible for the end user and installer.
TECH NOTE
It only takes about 15ftlbs to make 'em seal. The biggest issue I see when installing this parts is that you need to route the braided line like the stock hard line and be sure to secure it with the factory clamps and bracket. If not it will rub on coolant lines and the wiring harness.
Fits K03, K03K04hybrid and Garrett stock and hybrid Mk3/B4 turbos
