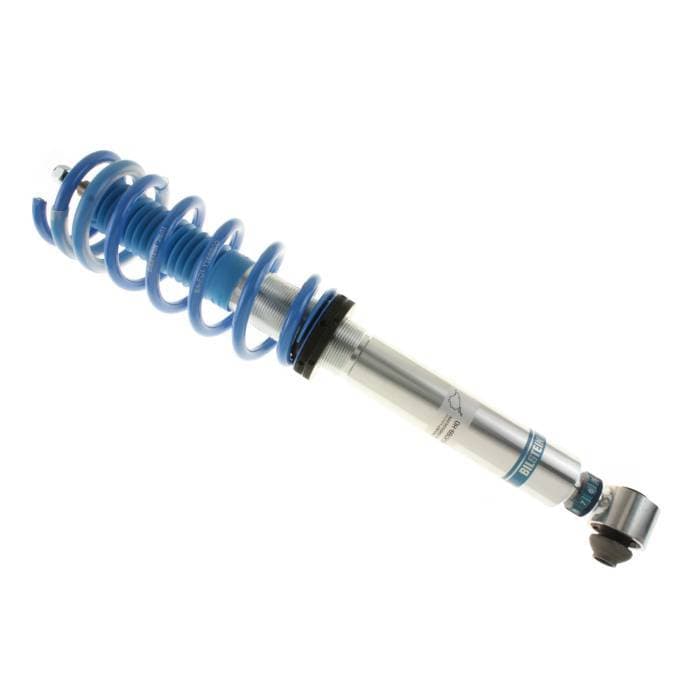

BILSTEIN B16 PSS9/PSS10

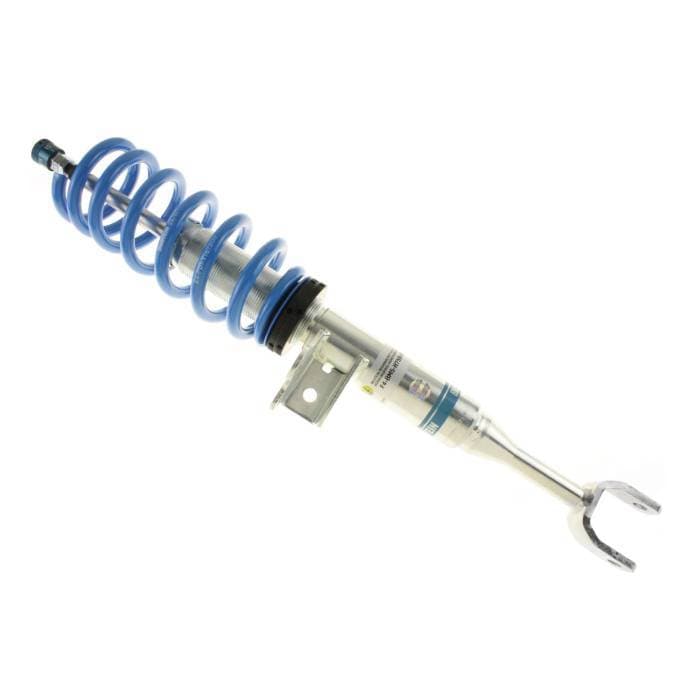

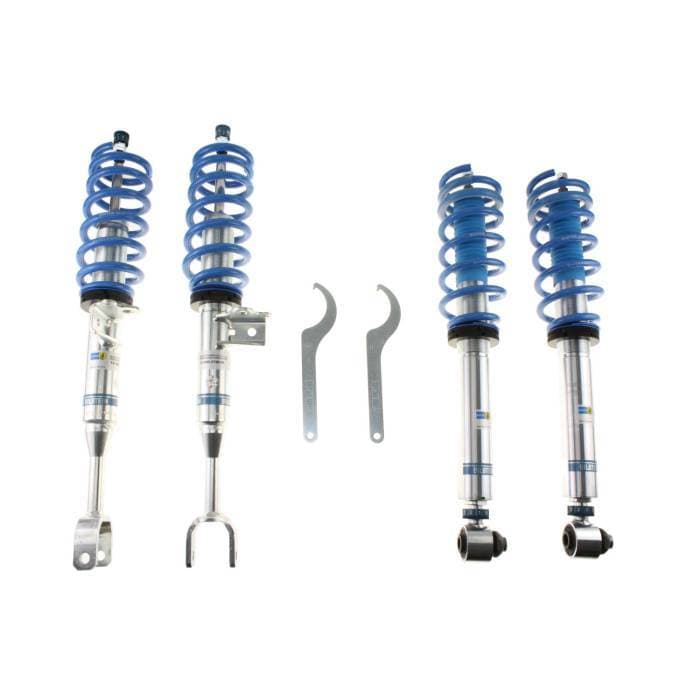

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.

Features and Benefits:

• Individual settings ranging from maximum Comfort to aggressive Sport can be selected by the twist of a dial (9 on PSS9, 10 on PSS10)


• Threaded body adjustable range of 20 mm at both axles


• Lowering of approx. 30-50 mm at front and rear


• Road-tested and fine-tuned by BILSTEIN ride engineers, under extreme motorsports conditions


• Spring plates and lock nuts made from a special aluminum alloy Surface coating using Triple-C-Technology for long-lasting corrosion resistance

Fitment Details:

2014: Without Electronic Suspension Rear Lowered Height: 10-30mm, up to 1320kg Axle Load Front Lowered Height: 10-30mm, up to 1250kg Axle Load

2015: Without Electronic Suspension w/Standard Suspension Only~ Up To 1250kg Axle Load; Rear Up To 1320kg Axle Load; w/10-30 mm Drop And Rear w/10-30 mm Drop Rear Lowered Height: 10-30mm, up to 1320kg Axle Load Front Lowered Height: 10-30mm, up to 1250kg Axle Load

2016: Without Electronic Suspension w/Standard Suspension Only~ Up To 1250kg Axle Load; Rear Up To 1320kg Axle Load; w/10-30 mm Drop And Rear w/10-30 mm Drop Rear Lowered Height: 10-30mm, up to 1320kg Axle Load Front Lowered Height: 10-30mm, up to 1250kg Axle Load
