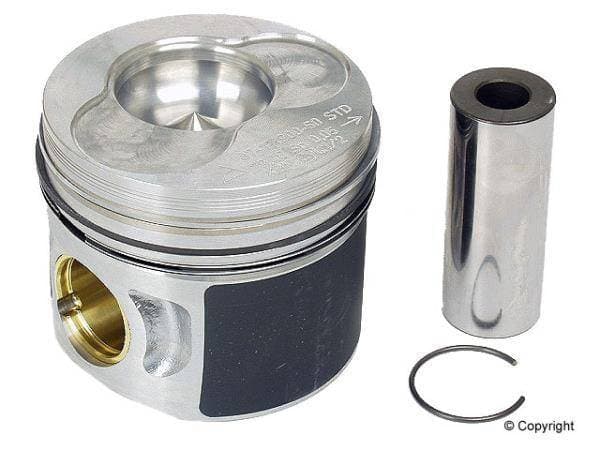

1.9 TDI Piston Set STANDARD - MK3 (1Z/AHU) and MK4 (ALH)

Set of 4 OEM VW pistons for 1.9 liter TDI, Standard size, includes Pins and rings

part numbers
2 x 038107065AA Cylinder 1&2
2 x 038107065AB Cylinder 3&4

Manufactured by Nural/Federal Mogul, the company that supplies the replacement pistons for VW dealerships.

Product Fits

Volkswagen

• 1997 - 1998 Mk3 Jetta TDI with AHU Engine Code


• 1996 - 1997 B4 Passat TDI with AHU or 1Z Engine Code


• 1999 - 2003 Mk4 Golf TDI with ALH Engine Code


• 1999 - 2003 Mk4 Jetta TDI with ALH Engine Code


• 1998 - 2003 Mk4 New Beetle TDI with ALH Engine Code


• 2002 - 2003 Mk4 Jetta Wagon with ALH Engine Code

Note: When replacing the engine block, rods, crankshaft, and especially pistons it is imperative to measure piston protrusion at TDC above the block deck in order to select the correct head gasket thickness. Projection MUST fall between .91mm and 1.20mm & have the appropriate head gasket thickness to achieve the correct compression ratio.
